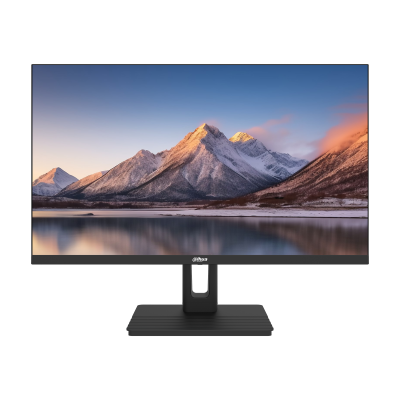

DAHUA C301B 24 inch IPS Monitor

Features

• 2560 × 1440 resolution delivers clearer, sharper, and more vivid images
• IPS panel with a 3‑sided frameless design for wide, immersive viewing
• 178° (H) / 178° (V) extra‑wide viewing angle for consistent image quality
• 5 ms fast response time reduces blurring and ghosting
• Low blue light technology supports a more comfortable viewing experience

Specifications

• Model: DHI-LM24-C301B
• LCD Technology: IPS
• Backlight: ELED
• Screen Size: 23.8 inch
• Aspect Ratio: 16:9
• Resolution: 2560 (H) × 1440 (V)
• Refresh Rate: 100 Hz
• Display Color: 8 bit
• Color Gamut: 85% NTSC
• Brightness: 300 cd/m² (max)
• Contrast Ratio: 1200:1
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Response Time: OD 5 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%

Device Ports

• Input: 1 × HDMI 1.4 (1440P@75 Hz), 1 × DP 1.2 (1440P@100 Hz)
• Output: 1 × Audio out

Power & Environmental Conditions

• Power Supply: 12 VDC, 2.5 A
• Power Type: Power adapter
• Power Consumption: 21 W (basic), 24 W (typ.), 24 W (max)
• Standby Power Consumption: ≤0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–90% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: -5° ± 2° / 15° ± 2°
• Product Dimensions (W × H × D): 539.2 mm × 320.4 mm × 41.3 mm (21.23" × 12.62" × 1.62"), without base
• Package Size (W × H × D): 612 mm × 405 mm × 111 mm (24.10" × 15.94" × 4.37")
• Frame Width (U/L/R/D): 3.1 mm / 3.1 mm / 3.1 mm / 15.9 mm
• Net Weight: 3.1 kg (6.83 lb)
• Gross Weight: 4 kg (8.82 lb)
• Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95")

Accessory

• Power adapter
• Base
• HDMI cable
• User's manual (QR code)
• QSG
• Legal and regulatory information

Optional Accessory

• Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
