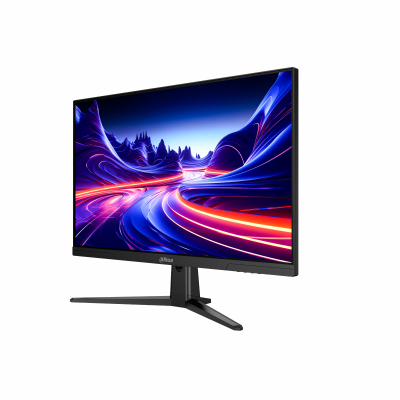

DAHUA E241B 27 inch IPS Monitor

Features

• Wide color gamut with 85% NTSC coverage, delivering rich image texture ideal for designers
• 178°H / 178°V extra‑wide viewing angle for all‑round visual performance
• Adaptive Sync technology effectively reduces picture lagging and tearing
• Ultra‑fast 0.5 ms response time (with OD) to eliminate blurring and ghosting

Specifications

• Model: DHI-LM27-E241B
• LCD Technology: IPS
• Backlight: ELED
• Screen Size: 27 inch
• Aspect Ratio: 16:9
• Viewing Size: 597.888 (H) × 336.312 (V) mm
• Screen-to-Body Ratio: ≥85%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.3114 mm × 0.3114 mm
• Pixels Per Inch: 81.59
• Resolution: 1920 (H) × 1080 (V)
• Refresh Rate: 240 Hz
• Display Color: 8 bit, 16.7M colors
• Color Gamut: 85% NTSC
• Brightness: 350 cd/m² (typ.)
• Contrast Ratio: 1000:1
• Response Time: MPRT 1 ms, OD 0.5 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%, 3H
• Low Blue Light: Software blue light protection
• HDR: HDR10

Device Ports

• Input: 1 × DP 1.4 (1920 × 1080@240 Hz), 1 × HDMI 2.0 (1920 × 1080@240 Hz)
• Output: 1 × Audio out

Power & Environmental Conditions

• Power Supply: 12 VDC, 4 A
• Power Type: Power adapter
• Power Consumption: 21 W (basic), 24.6 W (typ.), 32 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–80% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: -5° ± 2° / 20° ± 2°
• Product Dimensions (W × H × D): 614.3 mm × 366.8 mm × 57.2 mm (24.19" × 14.44" × 2.25"), without wall‑mount bracket
• Package Size (W × H × D): 695 mm × 460 mm × 150 mm (27.36" × 18.11" × 5.91")
• Unilateral Splicing (U/L/R/D): 8.21 mm / 8.21 mm / 8.21 mm / 22.30 mm (0.32" / 0.32" / 0.32" / 0.88")
• Net Weight: 3.55 kg (7.83 lb)
• Gross Weight: 4.85 kg (10.69 lb)
• Casing Color: Black
• Control Mode: Five‑button
• Status Indicator Light: Yes
• Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")

Accessory

• Power adapter
• DP cable
• User's manual
• Legal and regulatory information

Certification

• CE EMC
• CE LVD
• CE ERP
