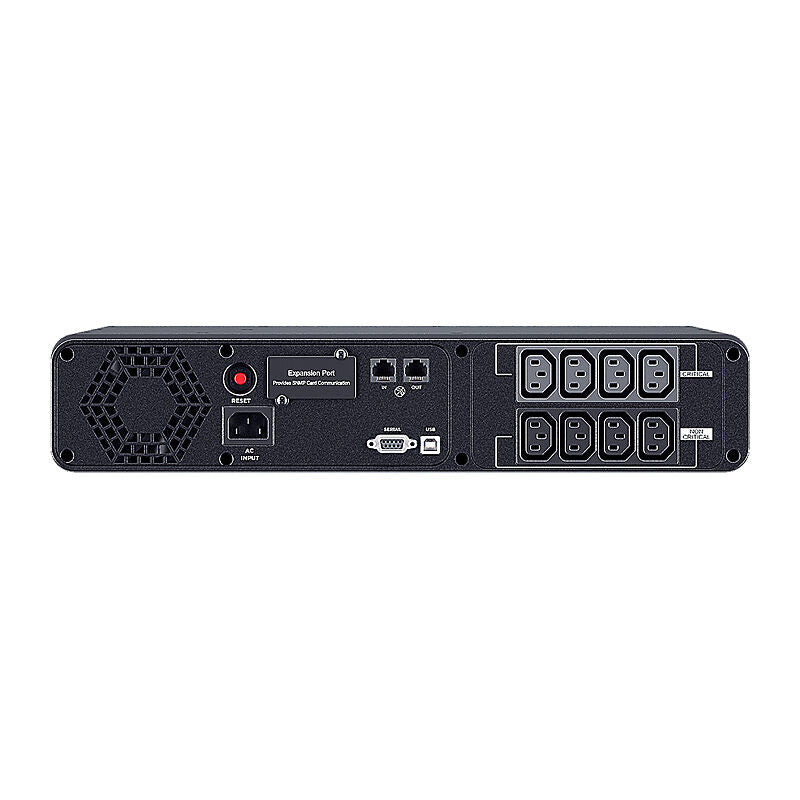

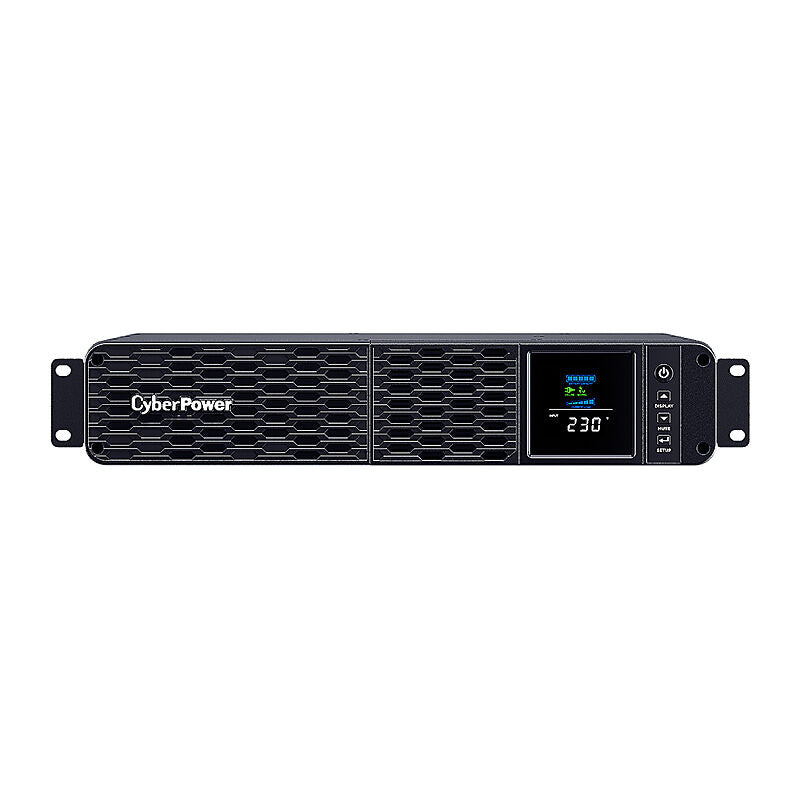

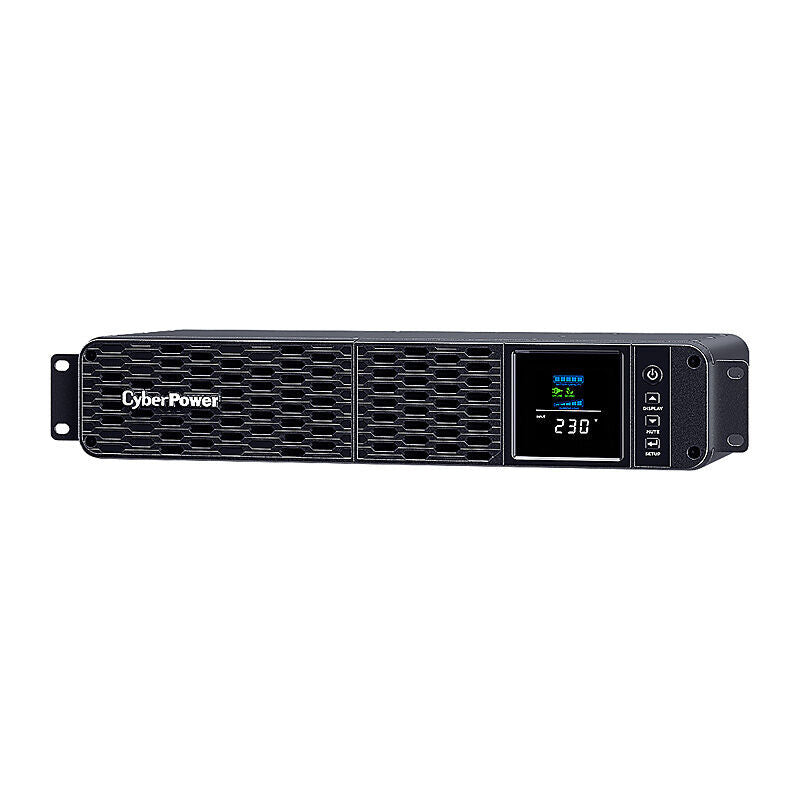

Cp Pfc Sinewave Series 2000VA

Features

• Line-interactive UPS topology
• Active PFC compatible
• Automatic Voltage Regulation (AVR)
• Critical & Non-critical load outlets
• Color LCD panel
• USB connectivity
• PowerPanel management software
• Surge and spike protection
• Network protection
• Energy saving technology
• Pure sine wave output
• Overload protection
• Hot-swappable batteries
• LED status indicator
• High-speed Ethernet data transmission
• SNMP/HTTP remote management (optional)
• EMI/RFI filtration
• Short-depth chassis design

Specifications

General

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Tech: GreenPower UPS™ Bypass
• Active PFC Compatibility: Yes

Input

• Nominal Voltage: 230 Vac
• Voltage Range: 169 ~ 271 Vac
• Frequency: 50/60 Hz ± 3 (Auto-sensing)
• Rated Current: 10 A
• Connector: IEC C14
• Detachable Cord: IEC C14 x1
• Cord Length: 6 ft / 1.8 m

Output

• Capacity: 2000 VA / 1200 W
• Waveform: Pure Sine Wave
• Voltage: 230 Vac ± 5%
• Frequency: 50/60 Hz ± 1%
• Power Factor: 0.6
• AVR: Single Boost
• Overload Protection: Circuit Breaker & Current Limiting
• Total Outlets: 8 (IEC C13)
• Battery & Surge Protected: 8
• Critical Load Outlets: 4
• Non-critical Load Outlets: 4

Battery

• Runtime: 7.9 min (Half Load), 1.3 min (Full Load)
• Recharge Time: 8 hours (90% recovery)
• User-replaceable & Hot-swappable: Yes
• Type: Sealed Lead-acid
• Replacement Battery Pack: RBP0188 (x1)

Protection & Network

• Surge Suppression: 900 Joules
• EMI/RFI Filtration: Yes
• Network Protection: RJ45 (1-in / 1-out)

Management & Indicators

• LCD Panel: Color LCD (Power, Battery, Load, Fault, Warning)
• LED Indicators: Power On
• USB Port: HID Compliant (x1)
• Audible Alarms: Battery Mode, Low Battery, Overload, Fault
• Included Cables: Power Cord x1, USB Cable x1
• Ethernet Speed: Up to 1Gbps
• Software: PowerPanel Business (Recommended)
• Remote Monitoring: Optional RMCARD205
• Cloud Service: 90 Days Free Trial

Physical

• Enclosure: Plastic, Black, Rackmount Ears Included
• Dimensions: 433 x 86 x 274 mm
• Weight: 12.96 kg
• Shipping Size: 523 x 162 x 374 mm
• Shipping Weight: 14.26 kg

Environmental

• Operating Temp: 0 ~ 40 °C (32 ~ 104 °F)
• Humidity: 0 ~ 95% (Non-condensing)
• Operating Elevation: 0 ~ 3,000 m (0-9,843 ft)
• Storage Temp: -15 ~ 45 °C (5 ~ 113 °F)
• Storage Elevation: 0 ~ 15,000 m (0-49,213 ft)
• Heat Dissipation: 23.9 BTU/hr

Certifications

• CE
• RoHS
