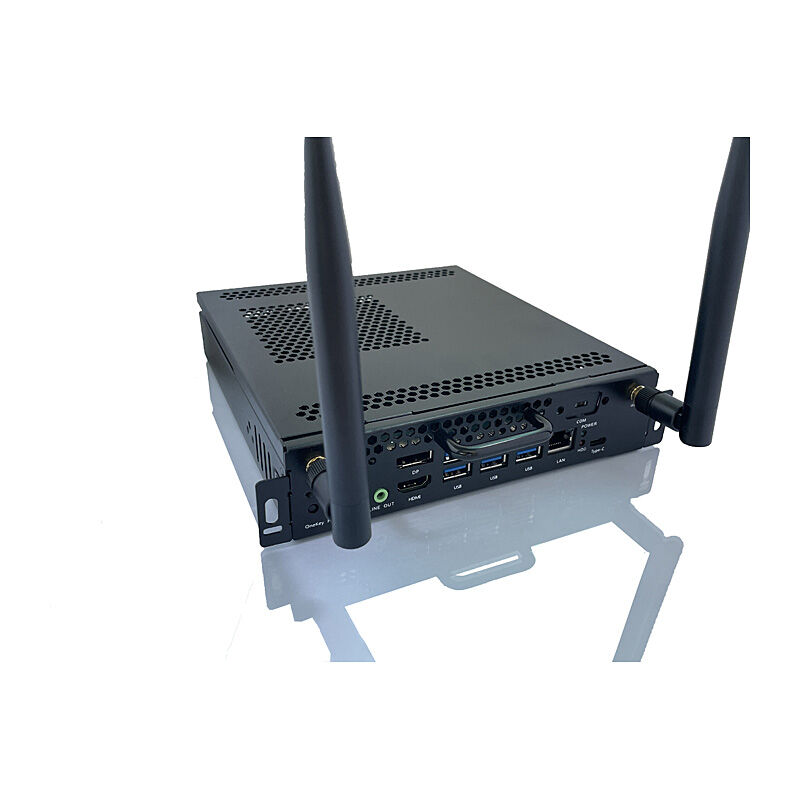

• Iqboard Ops Module I5

IQ Board

Iqboard Ops Module I5

SKU IBOPS-T
$1,951.63

IQBOARD OPS Module i5

    Specifications

    Unlicenced Windows 11 Pro pre-loaded (licence fees apply to reseller or end user)

    Features

    • CPU: Intel® Core™ i5 10200H, Processor base frequency 2.4 GHz, 4 cores 8 threads, 8M cache
    • RAM: 8 GB
    • Storage: 512G SSD
    • Graphics Card: Intel® Core™ 630

    Specifications

    Output

    • DP/HDMI dual display
    • 1 × DP (Maximum supported resolution: 4096 × 2160 @ 60 Hz)
    • 1 × HDMI (Maximum supported resolution: 4096 × 2160)

    Network

    • Network Card: 1 × RJ45 LAN, 1 × RTL8111 H 10/100/1000M
    • WIFI: 1 × WIFI, support 802.11ac/a/b/g/n; BT4.2

    I/O

    • USB 3.0: 6 × USB 3.0 + 1 × Type C
    • Power button: 1 × power button
    • OPS: 1 × OPS (80 pin)
    • Audio: 1 × LINE-OUT & MIC-IN
    • LED Light: 1 × Power light & 1 × Harddisk light

    Power Supply

    • Input: 19 V / 4.74 A

    Dimension

    • Dimension: 180 mm (L) × 195 mm (W) × 42 mm (H)

    Environment

    • Temperature: Operating temperature: 0°C ∼ 50°C; Storage temperature: -20°C ∼ 70°C
    • Humidity: 5%∼90% No condensation
    Only 1 left

    IQBOARD OPS Module i5

      Specifications

      Unlicenced Windows 11 Pro pre-loaded (licence fees apply to reseller or end user)

      Features

      • CPU: Intel® Core™ i5 10200H, Processor base frequency 2.4 GHz, 4 cores 8 threads, 8M cache
      • RAM: 8 GB
      • Storage: 512G SSD
      • Graphics Card: Intel® Core™ 630

      Specifications

      Output

      • DP/HDMI dual display
      • 1 × DP (Maximum supported resolution: 4096 × 2160 @ 60 Hz)
      • 1 × HDMI (Maximum supported resolution: 4096 × 2160)

      Network

      • Network Card: 1 × RJ45 LAN, 1 × RTL8111 H 10/100/1000M
      • WIFI: 1 × WIFI, support 802.11ac/a/b/g/n; BT4.2

      I/O

      • USB 3.0: 6 × USB 3.0 + 1 × Type C
      • Power button: 1 × power button
      • OPS: 1 × OPS (80 pin)
      • Audio: 1 × LINE-OUT & MIC-IN
      • LED Light: 1 × Power light & 1 × Harddisk light

      Power Supply

      • Input: 19 V / 4.74 A

      Dimension

      • Dimension: 180 mm (L) × 195 mm (W) × 42 mm (H)

      Environment

      • Temperature: Operating temperature: 0°C ∼ 50°C; Storage temperature: -20°C ∼ 70°C
      • Humidity: 5%∼90% No condensation
      Iqboard Ops Module I5

      Add On products

        Frequently Bought Together

        Total price $2,095.75

        Product Description

        IQBOARD OPS Module i5

          Specifications

          Unlicenced Windows 11 Pro pre-loaded (licence fees apply to reseller or end user)

          Features

          • CPU: Intel® Core™ i5 10200H, Processor base frequency 2.4 GHz, 4 cores 8 threads, 8M cache
          • RAM: 8 GB
          • Storage: 512G SSD
          • Graphics Card: Intel® Core™ 630

          Specifications

          Output

          • DP/HDMI dual display
          • 1 × DP (Maximum supported resolution: 4096 × 2160 @ 60 Hz)
          • 1 × HDMI (Maximum supported resolution: 4096 × 2160)

          Network

          • Network Card: 1 × RJ45 LAN, 1 × RTL8111 H 10/100/1000M
          • WIFI: 1 × WIFI, support 802.11ac/a/b/g/n; BT4.2

          I/O

          • USB 3.0: 6 × USB 3.0 + 1 × Type C
          • Power button: 1 × power button
          • OPS: 1 × OPS (80 pin)
          • Audio: 1 × LINE-OUT & MIC-IN
          • LED Light: 1 × Power light & 1 × Harddisk light

          Power Supply

          • Input: 19 V / 4.74 A

          Dimension

          • Dimension: 180 mm (L) × 195 mm (W) × 42 mm (H)

          Environment

          • Temperature: Operating temperature: 0°C ∼ 50°C; Storage temperature: -20°C ∼ 70°C
          • Humidity: 5%∼90% No condensation
