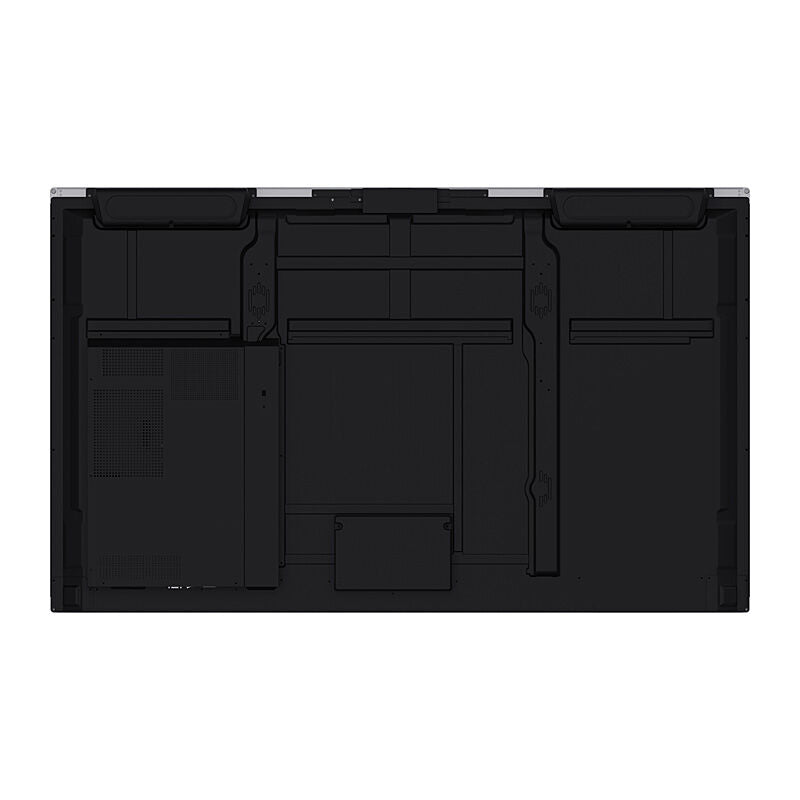

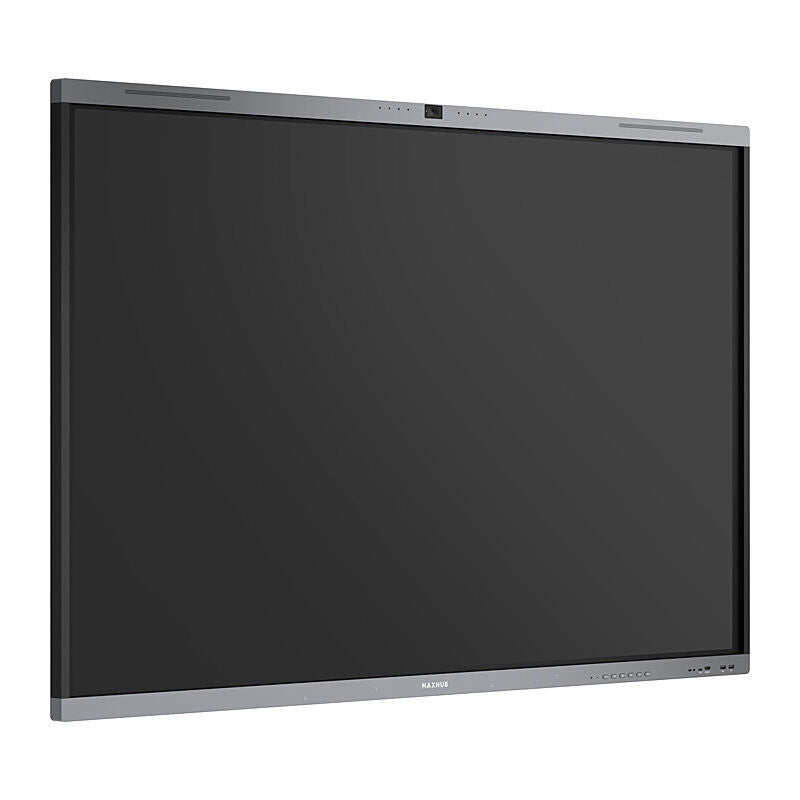

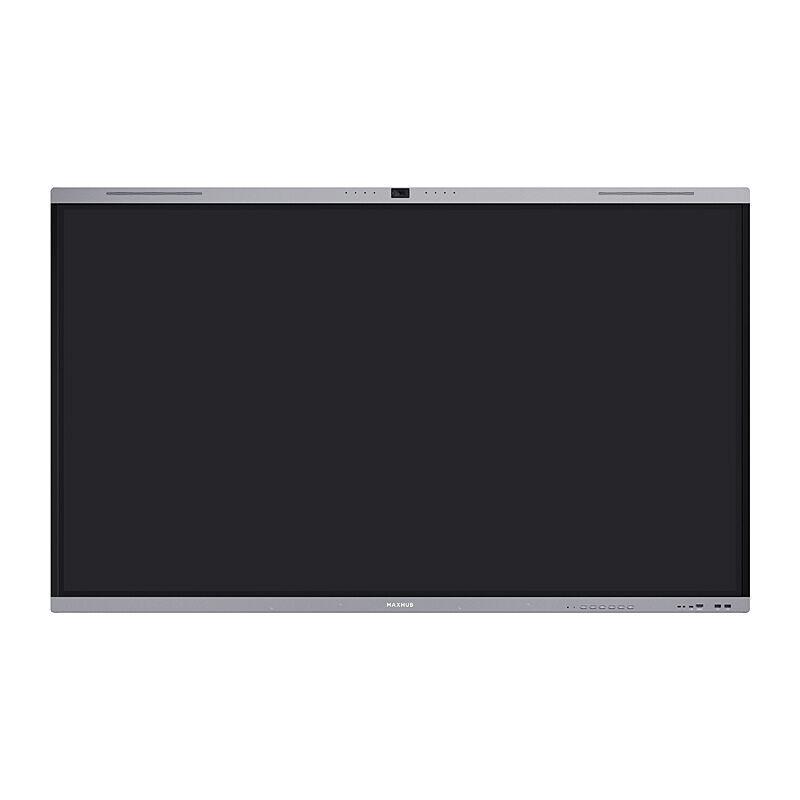

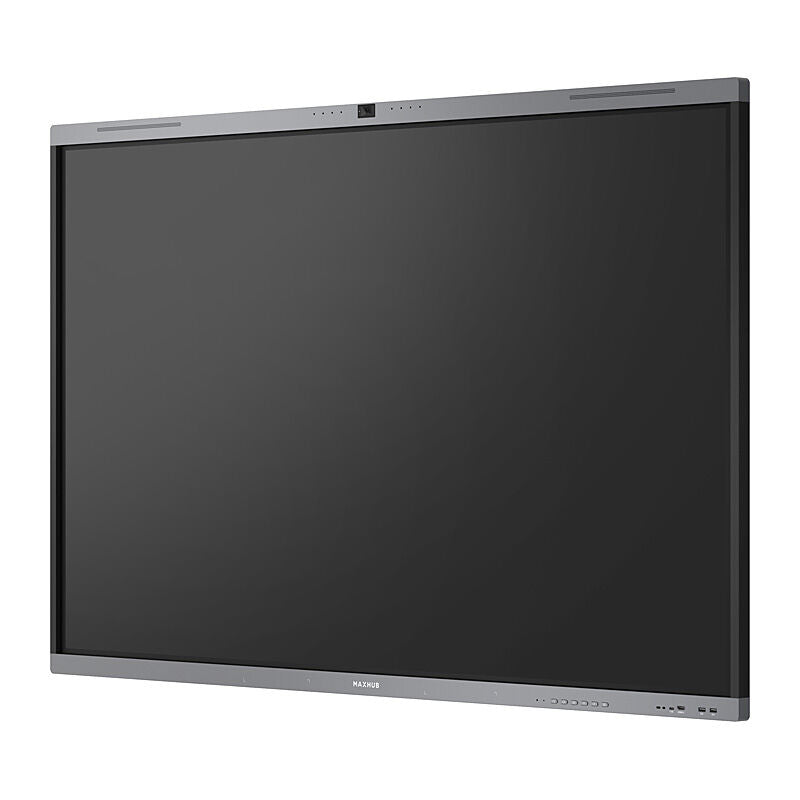

Maxhub U Series U6540 65''

Features

• Prominent Display – 4K display, 10 bit color, high color accuracy,
• Classroom Care – Hardware-grade eye care, Low Blue Light and Flicker Free certification
• SkyWave Sound System – 2.2 channel speaker, 2—12W + 2—25W maximum output
• Advanced Security System – Powered by Android 15 with Google EDLA certification
• Peak Performance – Octa-core CPU, independent NPU, 16GB RAM, 256GB ROM
• Convenient Connectivity – Full-function USB-C integrating 100W PD, video, audio, touch, and internet access features
• Precious Touch – MAXHUB Think&Ink Technology, 50 touch points, ±0.5 mm touch accuracy
• Comprehensive Software Suite – Versatile applications for education and collaboration

Specifications

Display

• Model: U6540
• Diagonal Size: 65 inch
• Display Area: 1428.48 (H) — 803.52 (V) mm
• Aspect Ratio: 16:9
• Resolution: 3840 (H) — 2160 (V)
• Viewing Angle: 178° (H/V)
• Screen Level: A-Level
• Brightness: 500 nits (max.)
• Contrast Ratio: 5,000:1 (typ.), 50,000:1 (dynamic)
• Color Depth: 1.07B (10bit)
• Color Gamut (typ.): 98% sRGB
• Color Accuracy:
• Glass: Zero parallax, 3 mm thickness, 9H tempered
• Surface Technology: Non-glare, 25% haze, Etched-AG Technology
• Sensors: Ambient light sensor, Ambient color temperature sensor
• Eyes Care: TœV Flicker Free, TœV Low Blue Light
• Refresh Rate: 60Hz
• Response Time: 6.5 ms
• Backlight Unit: DLED
• Backlight Life (typ.): 60,000 Hours

Touch System

• Touch Technology: Infrared recognition
• Touch Points: 50
• Object Recognition Range: 1.5 mm
• Accuracy: ± 0.5 mm
• Response Time: 2.5 ms
• Writing Height: 1 mm
• System: MAXHUB Think&Ink (Direct Annotation, Palm Rejection, Sharp Erase, Erase & Write Simultaneously, Multi-level Object Recognition, Single Pen Dual Color)
• OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome

Connectivity

• Input:
  • HDMI IN — 4 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC, ARC (HDMI 1)
  • USB 2.0 — 1 — For system upgrades
  • USB 3.0 — 4 — Front — 2 + Rear — 2
  • Touch — 2
  • USB Type-C — 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD; Rear: 100W PD)
  • DP IN — 1 — 4K@30Hz, HDCP 1.4/2.2/2.3
  • AUDIO IN — 1 — 3.5 mm jack
  • RS232 — 1 — Baud rate 9600
  • RJ45 IN — 1 — 10M/100M/1000Mbps
  • TF Card Port — 1 — Expandable up to 1TB
• Output:
  • HDMI OUT — 1 — Up to 4K@60Hz
  • AUDIO OUT — 1 — 3.5 mm jack
  • USB Type-C — 1 — Type-C OUT
  • SPDIF — 1 — PCM output format
  • RJ45 OUT — 1 — 10M/100M/1000Mbps
• OPS Slot: Module slot — 1
• Wi-Fi Module Slot: Module slot — 1 (Wi-Fi Module SI07B)
• Wireless: Wi-Fi 6 (802.11ac/b/g/n/a/ax, 2.4GHz/5GHz), Bluetooth 5.2

Built-in System

• Operating System: Android 15.0
• Certification: Google EDLA
• RAM: 16 GB
• ROM: 256 GB
• SoC Process: 8 nm
• CPU: A76—4 + A55—4 Octa-core, 2.4GHz
• GPU: Mali-G610 MP4
• NPU: 6 TOPS

Camera

• Quantity: 1
• Resolution: 50MP
• FOV: 115° DFOV, 101° HFOV, 85° VFOV
• Features: Manual Mode, Auto Framing, Speaker Tracking, Person Counting, Random Election

Audio

• Audio System: SkyWave Sound System
• Sound Channel: 2.2
• Speaker Power: 2—8W + 2—18W (output), 2—12W + 2—25W (maximum)
• Sound Pressure Level: 88 dB (1W, 1m)
• Microphone: 8-mic array
• Pick-up Angle: 180°
• Pick-up Range: 0 ~ 12 m
• Features: Intelligent Audio Fence, AI Spatial Sound, AEC (Auto Echo Cancellation), ANC (AI Noise Cancellation), AGC (Auto Gain Control)

Power

• Power Supply: AC 100~240V 50/60Hz
• Standby Consumption: 0.5W
• Typical Consumption: 70W
• Power Saving: Energy Star Certification

Physical Specification

• Dimension (L — H — D): 1488.4 — 909.4 — 97 mm
• Shipping Dimension (L — H — D): 1628 — 1020 — 185 mm
• Thickness (Machine + Wall Mount): 122 mm
• Wall-hanging Screw: M7 — 56 mm
• VESA: No
• Net Weight: 30.7 kg
• Gross Weight: 40.5 kg

Environment

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 meters
• Dust Resistance: IP5X-rated

Accessories

• Power Cord (3 m — 1)
• HDMI Cable (3 m — 1)
• Remote Control — 1
• Stylus SW13F — 2
• Display Bracket — 2
• Wall Mount Bracket WIB9060K — 1
• Wi-Fi Module SI07B — 1

Optional Module

• USB Camera UC W31
• PTZ Camera UC P30
• Video Bar UC S07
• OPS Module OPS62A/OPS72A
• Smart Pen SP30B
• Sensor Box WL10C, WL20
• Mobile Stand ST33M, ST23B, EST09

Software System

• OS: MAXHUB EDU OS V4
• Whiteboard Tool: MAXHUB Class Pro
• Screen Sharing: MAXHUB Connect
