Features

• One‑Cable Technology: Easy and flexible installation with a single cable between the IFP and touch console
• Motion Sensor: Automatically sleeps or wakes the room display based on inactive/active HDMI video signals to save energy
• Content Sharing: Share content on the IFP using a USB‑C cable
• PoE Power: Supports standard power supply and data transmission

Specifications

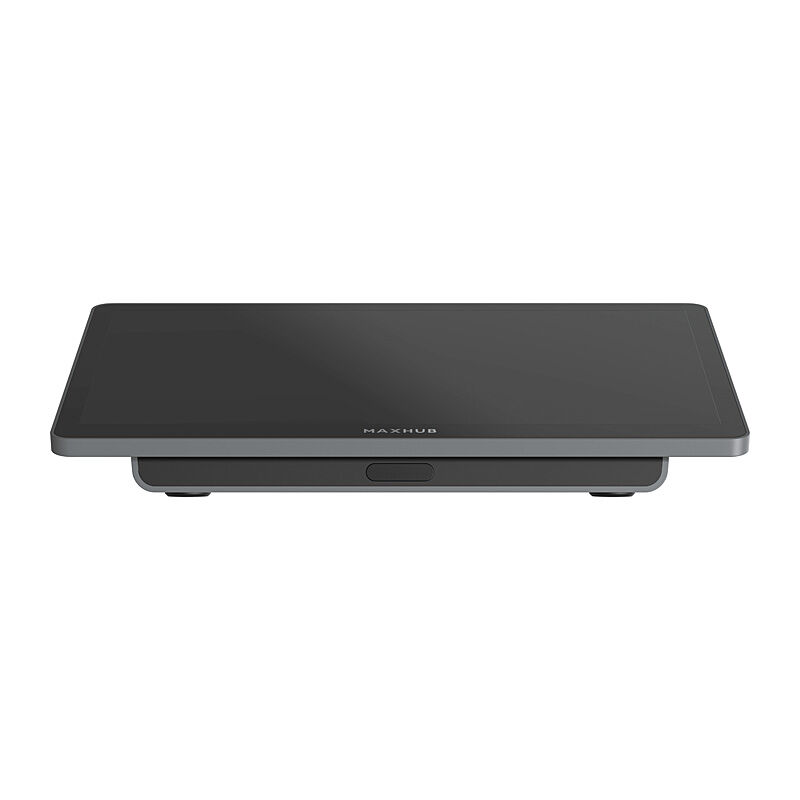

• TCP33T Universal Console: × 1
• UD20A Interface Converter: × 1
• PoE Adapter: × 1
• Package Dimension (4 pieces): 590 × 440 × 280 mm / 23.23 × 17.32 × 11.02 inch
• Package Weight: 4.6 kg / 10.14 lbs

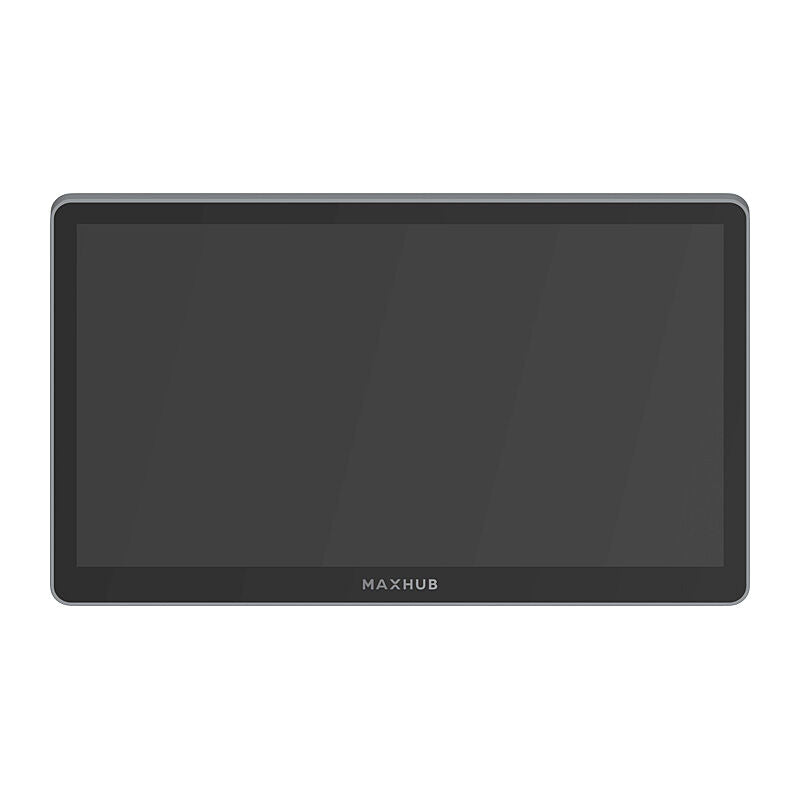

Display

• Size: 11.6 inch
• Resolution: 1920 × 1080
• Refresh Rate: 60 Hz
• Back Light Unit: ELED
• Brightness With Glass: 250 nits (Min.), 300 nits (Max.)
• Lifespan: ≥ 20000 hours

Touch System

• Type: Capacitive touch
• Surface Treatment: Anti-fingerprint, Anti-glare

Sensor

• Motion Sensor: PIR sensor for automatic wake-up
• Ultrasound Emitter: Supported

Environmental Condition

• Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
• Operating Humidity: 10% ~ 90% RH
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 m

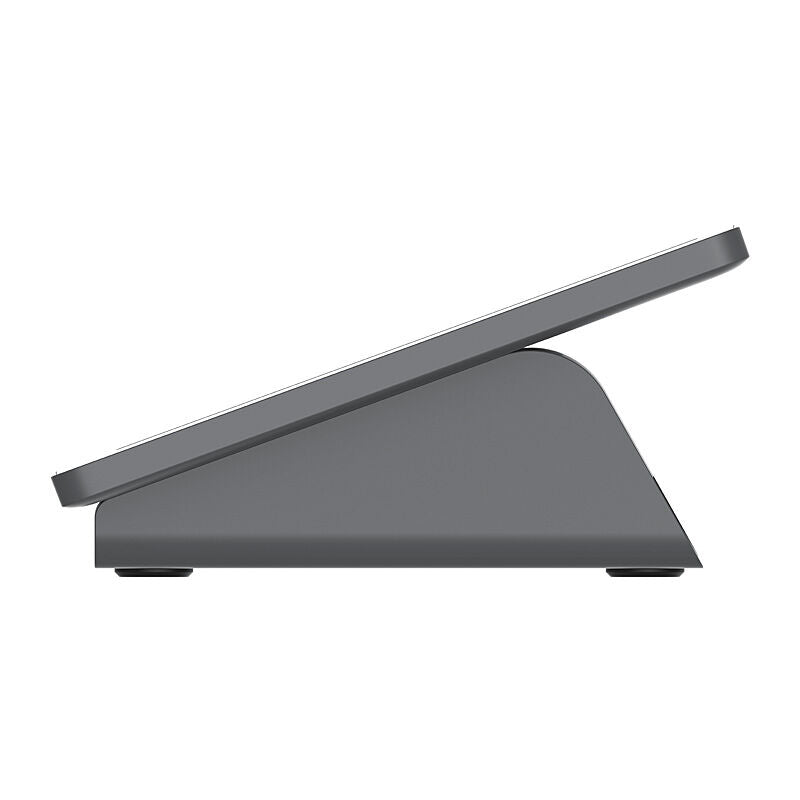

Physical Specification

• Product Dimension (L × W × H): 278 × 164 × 82 mm / 11 × 6.4 × 3.2 inch
• Product Weight: 1.16 kg / 2.56 lbs

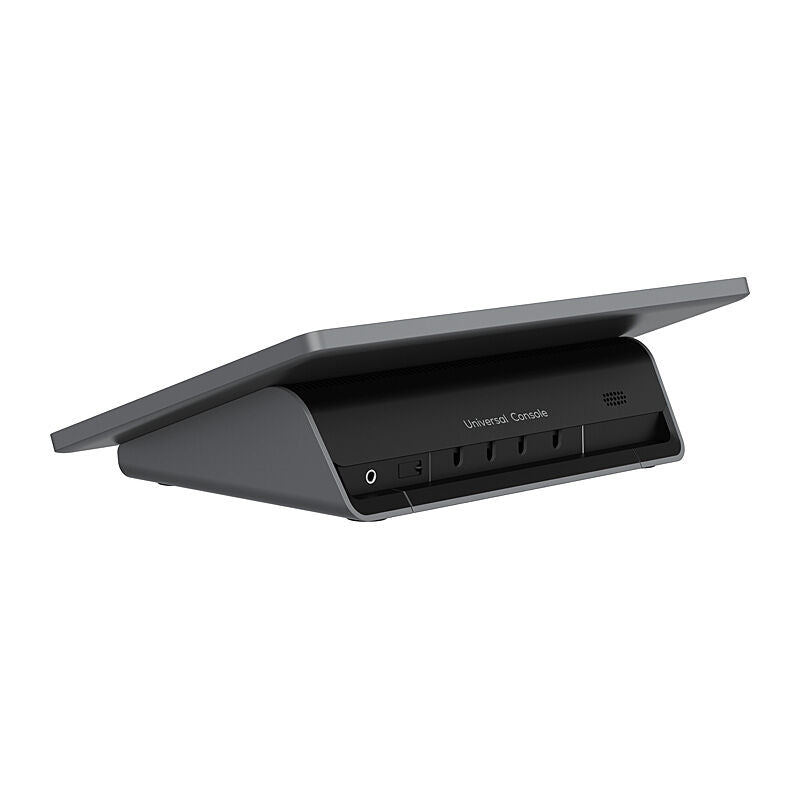

I/O Port

• USB‑C (Content Sharing): × 1
• RJ45: For connecting PoE adapter or MAXHUB XBoard V7 Teams Room
• Kensington Slot: × 1

Standard Accessories

• Power Cord: × 3
• Ethernet Cable (7.5 m / 24.6 ft): × 2
• UD20A Interface Converter: × 1
• PoE Adapter (Output: 54V, 0.56A, 30.24W): × 1
• Type‑C Cable (1.8 m / 5.9 ft): × 1
• Quick Start Guide: × 1
• Screwdriver: × 1
