Features

• 200MP Camera System Ultra-high-resolution camera system redefines image clarity and spatial adaptability
• Quad Sight Lens Ultra-wide 125° HFOV. Dual telephoto lens for close-up tracking
• AI-Powered Technology Auto Framing, Speaker Tracking, Smart Gathering, Intelligent Focus
• AI Noise Reduction Noise Reduction, Echo Cancellation, Anti-Reverberation, AGC Algorithm
• Extended Capability Can connect to both third-party device and exclusive MAXHUB device
• Studio-Grade Dual Speakers Dual 20W, Stereo Sound, Full Frequency, Quad Passive Radiator
• BYOD Mode Connect to your PC with a single USB cable for BYOD meeting
• Cloud Device Management Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection

Specifications

Package Contents

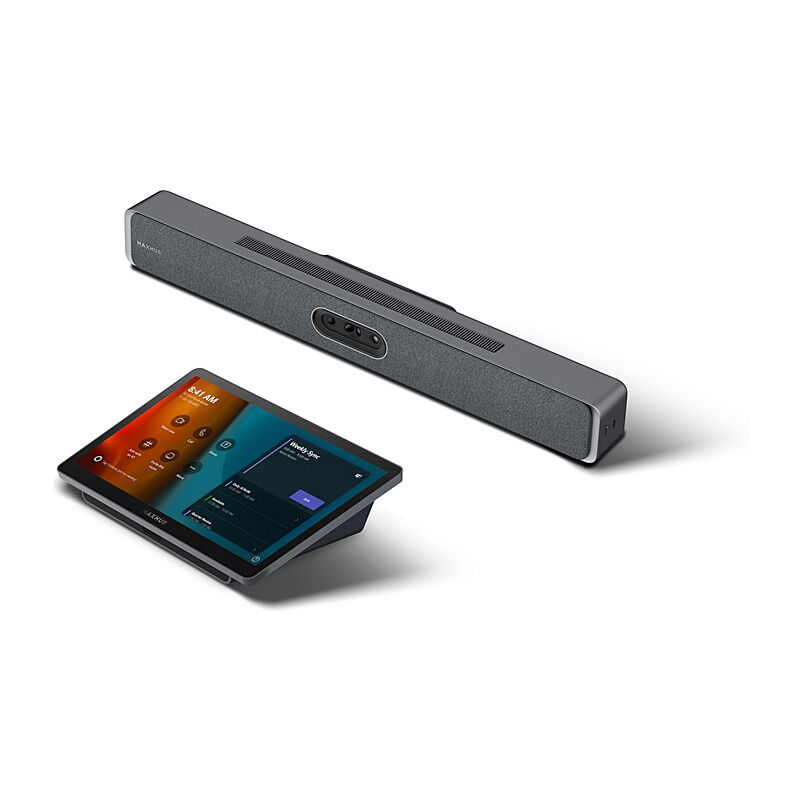

• XBar V70 (With Accessories) × 1
• Panel AP30 (With Accessories) × 1

Device Management

• Microsoft Device Management Platform
  • Microsoft Teams Admin Center
  • Intune
  • Pro Management Portal
• MAXHUB Pivot

Physical Specification

• Package Dimensions: 985 × 290 × 275 mm / 38.8 × 11.4 × 10.8 in
• Gross Weight: 11.7 kg / 25.79 lb

Environmental Condition

• Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 m

Content Sharing

• Teams (In Meeting): 1080p@30
• Local Sharing (Type-C): 4K@30
• Local Sharing (HDMI): 4K@30

XBar V70

Camera

• Quantity: 4
• Pixel: 50MP × 4
• Sensor: 1/1.55 inch
• Aperture: F/2.4
• Resolution & Frame Rate:
  • H.264 / MJPEG: 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×576, 960×540, 800×600, 640×360
  • YUY2: 1920×1080, 1280×720, 640×360
• Zoom: 8x Hybrid Zoom
• Wide Camera FOV: 130° (D), 125° (H), 50° (V)
• Telephoto Camera FOV: 52° (D), 42° (H), 32° (V)
• Privacy Shutter: Electric and automatic lens shutter

AI Features (Camera)

• Auto Framing
• Speaker Tracking
• Intelligent Focus
• Smart Gathering
• Video Fence

Audio

Speaker

• Quantity: 2
• Sound Channel: 2.0
• Total Power: 20W + 20W
• Max Sound Pressure: 88 dB (+/-2 dB) SPL@1W/0.5m
• Frequency Range: 80 Hz ~ 20 KHz

Microphone

• Quantity: 16-mic array
• Pickup Range: 10 m
• Frequency Range: 20 Hz ~ 16 KHz
• Sensitivity: -36 ± 1 dBFS
• Sampling Rate: 48 KHz
• Expansion: Supports 2 expansion microphones

AI Features (Audio)

• Noise Reduction
• Echo Cancellation
• Anti-Reverberation
• AGC Algorithm
• Full-Duplex

Input/Output Ports

• USB-A (2.0) × 1 (Firmware update and debug)
• HDMI In × 1 (Up to 4K@60Hz)
• HDMI Out × 2 (Up to 4K@60Hz, CEC supported)
• USB-B 3.0 (Device) × 1 (BYOD Mode)
• DC In × 1 (19V power supply)
• Audio In × 1 (Third-party audio input)
• RJ45 (Internet) × 1
• RJ45 (M Link) × 1 (Panel connection)
• RJ45 (Ext) × 1 (Expansion device connection)
• USB-A (3.0) × 1 (Firmware update and debug)
• Audio Out × 1 (Third-party audio output)

Standard Accessories

• Power Adapter × 1
• AC Cable (1.5 m / 4.9 ft) × 1
• HDMI Cable (3 m / 9.8 ft) × 2
• Ethernet Cable (3 m / 9.8 ft) × 1
• Mounted Components × 1

Physical Specification

• Product Dimensions: 840.6 × 117.6 × 104 mm / 33.1 × 4.6 × 4.1 in
• Package Dimensions: 962 × 169 × 246 mm / 37.9 × 6.7 × 9.7 in
• Net Weight: 4.3 kg / 9.7 lb
• Gross Weight: 7.0 kg / 15.4 lb

Power

• Power Adapter: AC 100–240 V Input, DC 19V/4.5A Output

Network

• Wi-Fi: Wi-Fi 6, 2×2 MIMO
• Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
• Working Band: 2.4 GHz + 5 GHz
• Bluetooth: 5.2 + BLE
• Network Speed: 1000 Mbps

Operating System

• MDEP Supported
• Android 13

Panel AP30

Display

• Size: 11.6 inch
• Resolution: 1920 × 1080
• Refresh Rate: 60 Hz
• Backlight Unit: ELED
• Brightness With Glass: 250 nits (Min.), 300 nits (Max.)
• Life Time: ≥ 20000 hours

Touch System

• Type: Capacitive touch
• Surface Treatment: Anti-fingerprint, Anti-glare

Sensor

• Motion Sensor: PIR sensor for automatic wake-up

Standard Accessories

• Type-C Cable (1.5 m / 4.92 ft) × 1
• Ethernet Cable (7.5 m / 24.61 ft) × 1
• Screwdriver × 1
• Power Adapter × 1
• AC Cable (1.5 m / 4.9 ft) × 1

Input/Output Ports

• RJ45 (Internet) × 1
• RJ45 (Ext) × 1
• DC In (Power) × 1
• Type-C (Ingest) × 1
• USB 2.0 (Pairing Wireless Dongle) × 1

Power

• Power Input: 19V DC 4.5A
• Power Output: Type-C PD 65W (Max.)

Physical Specification

• Product Dimensions (L×W×H): 278 × 164 × 82.4 mm / 11 × 6.4 × 3.2 inch
• Product Weight: 1.16 kg / 2.56 lb
• Package Dimensions (1 pcs): 570 × 246 × 101 mm
• Package Dimensions (4 pcs): 590 × 440 × 280 mm
• Package Weight (1 pcs): 3.12 kg

Operating System

• MDEP Supported
• Android 13
