Features

• 200MP Camera System Ultra-high-resolution camera system redefines image clarity and spatial adaptability
• Quad Sight Lens Ultra-wide 125° HFOV. Dual telephoto lens for close-up tracking
• AI-Powered Technology Auto Framing, Speaker Tracking, Smart Gathering, Intelligent Focus
• AI Noise Reduction Noise Reduction, Echo Cancellation, Anti-Reverberation, AGC Algorithm
• Extended Capability Can connect to both third-party device and exclusive MAXHUB device
• Studio-Grade Dual Speakers Dual 20W, Stereo Sound, Full Frequency, Quad Passive Radiator
• BYOD Mode Connect to your PC with a single USB cable for BYOD meeting
• Cloud Device Management Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection

Specifications

XBar W70 Kit

Package Contents

• XBar W70 (With Standard Accessories) × 1
• TCP31T Touch Console (With Standard Accessories) × 1

Optional Accessories

• Wireless Dongle WT13M or WT13S

Physical Specification

• Package Dimensions: 985 × 290 × 275 mm / 38.8 × 11.4 × 10.8 in
• Gross Weight: 14 kg / 30.86 lb

Device Management

• Control and Management: MAXHUB Pivot

Environmental Condition

• Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 m

Content Sharing

• Teams (In Meeting): 1080p@30
• Local Sharing (Type-C): 1080p@30
• Local Sharing (HDMI): 4K@30

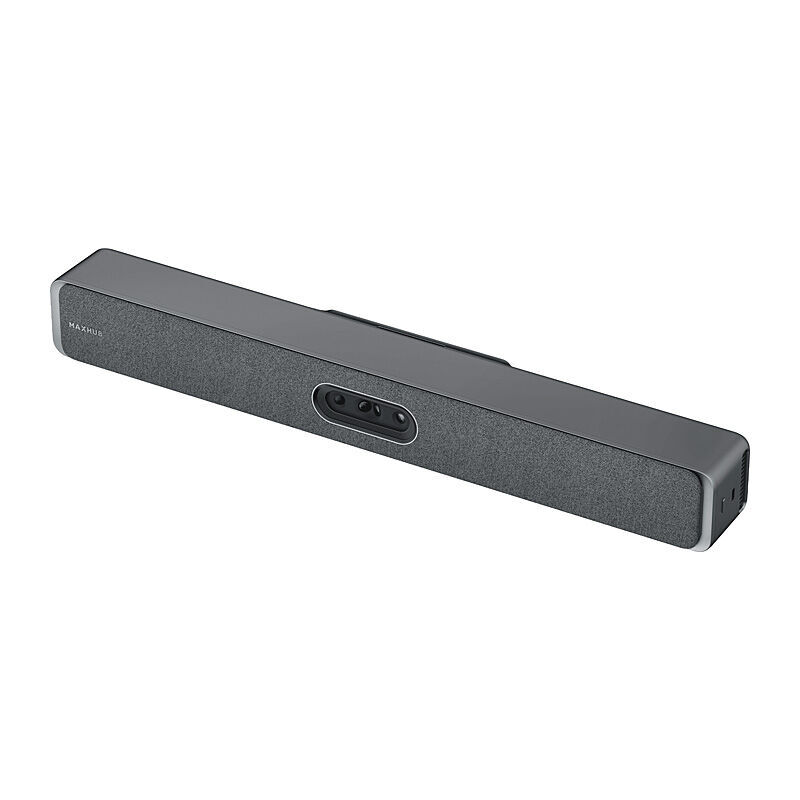

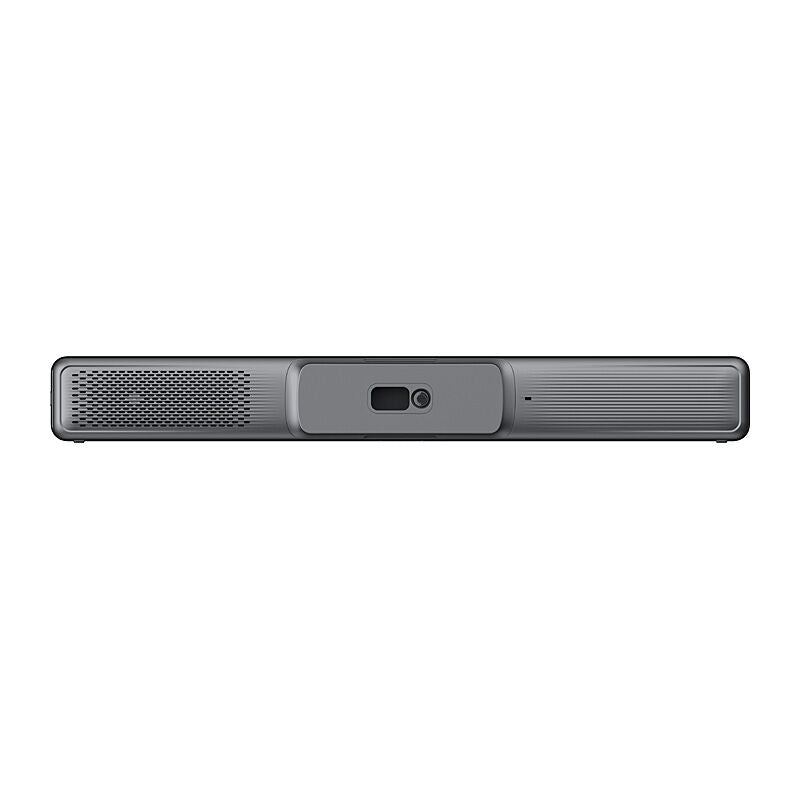

XBar W70

General Information

• CPU: Intel® Core™ i5-1240P Processor
• Memory: 16 GB
• Storage: 256 GB
• Graphics: Intel® UHD Graphics for 12th Gen Intel® Processors

Camera

• Quantity: 4
• Pixel: 50MP × 4
• Sensor: 1/1.55 inch
• Aperture: F/2.4
• Resolution & Frame Rate:
  • H.264 / MJPEG: 3840×2160, 2560×1440, 1920×1080, 1280×720, 1024×576, 960×540, 800×600, 640×360
  • YUY2: 1920×1080, 1280×720, 640×360
• Zoom: 8x Hybrid Zoom
• Wide Camera FOV: 130° (D), 125° (H), 50° (V)
• Telephoto Camera FOV: 52° (D), 42° (H), 32° (V)
• Privacy Shutter: Electrical and automatic lens shutter

AI Features (Camera)

• Auto Framing
• Speaker Tracking
• Intelligent Focus
• Smart Gathering
• Video Fence

Audio

Speaker

• Quantity: 2
• Sound Channel: 2.0
• Total Power: 20W + 20W
• Max Sound Pressure: 88 dB (+/-2 dB) SPL@1W/0.5m
• Frequency Range: 80 Hz ~ 20 KHz

Microphone

• Quantity: 16-mic array
• Pickup Range: 10 m
• Frequency Range: 20 Hz ~ 16 KHz
• Sensitivity: -36 ± 1 dBFS
• Sampling Rate: 48 KHz
• Expansion: Supports 2 expansion microphones

AI Features (Audio)

• Noise Reduction
• Echo Cancellation
• Anti-Reverberation
• AEC (Acoustic Echo Cancellation)
• ANS (Automatic Noise Suppression)
• AGC (Automatic Gain Control)
• Full-duplex

Input/Output Ports

• USB 3.0 Type-A × 1 (Third-party audio input)
• USB 2.0 Type-A × 1 (Firmware update and debug)
• HDMI Out × 3 (Up to 4K@60Hz, CEC supported)
• HDMI In × 1 (Up to 4K@60Hz)
• RJ45 (Internet) × 1
• RJ45 (M Link) × 1 (BYOD wired connection)
• RJ45 (Console) × 1 (Touch console connection)
• RJ45 (Ext) × 1 (MAXHUB accessories)
• DC In × 1 (19V power input)

Standard Accessories

• Power Adapter × 1
• AC Cable (1.5 m / 4.9 ft) × 1
• HDMI Cable (3 m / 9.8 ft) × 2
• Ethernet Cable (3 m / 9.8 ft) × 1
• Ethernet Cable (7.5 m / 24.6 ft) × 1
• Mounted Components × 1

Physical Specification

• Product Dimensions: 840.6 × 117.6 × 104 mm / 33.1 × 4.6 × 4.1 in
• Net Weight: 5.0 kg / 11.0 lb

Power

• Power Adapter: AC 100–240 V Input, DC 19V/10A Output

Operating System

• Windows 11 IoT Enterprise SAC
• Application: Microsoft Teams Room

Network

• Wi-Fi: Wi-Fi 6, 2×2 MIMO
• Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
• Working Band: 2.4 GHz + 5 GHz
• Working Mode: STA
• Bluetooth: 5.2 + BLE
• Network Speed: 1000 Mbps

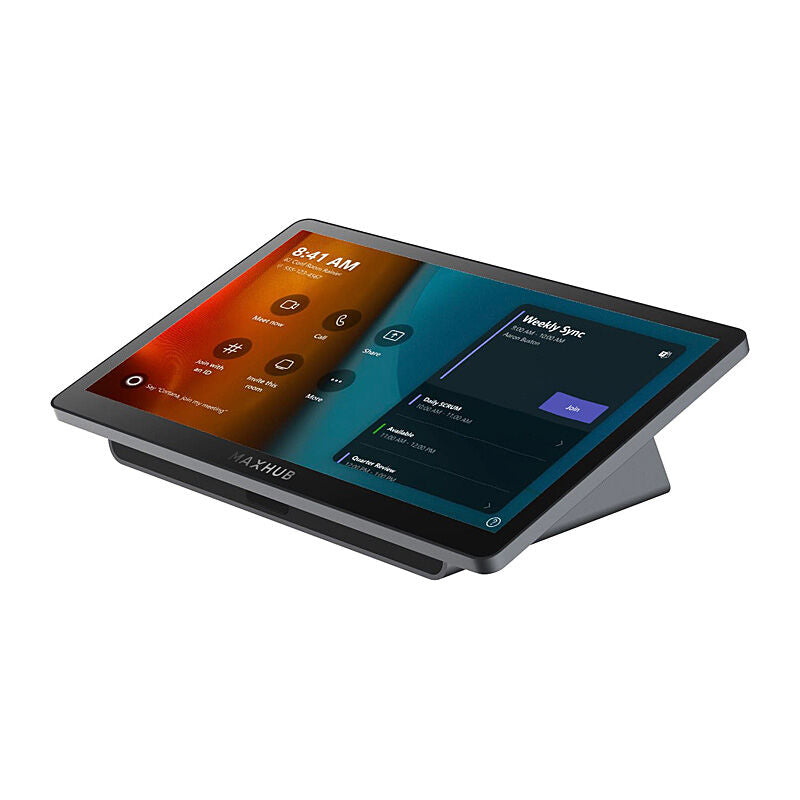

Touch Console TCP31T

Display

• Size: 11.6 inch
• Resolution: 1920 × 1080
• Refresh Rate: 60 Hz
• Backlight Unit: ELED
• Brightness With Glass: 250 nits (Min.), 300 nits (Max.)
• Life Time: ≥ 20000 hours

Touch System

• Type: Capacitive touch
• Surface Treatment: Anti-fingerprint, Anti-glare

Physical Specification

• Product Dimensions (L×W×H): 278 × 164 × 82.4 mm / 11 × 6.4 × 3.2 inch
• Product Weight: 1.16 kg / 2.56 lb

Sensor

• Motion Sensor: PIR sensor for automatic wake-up

Standard Accessories

• USB-C Cable (1.8 m / 5.9 ft) × 1
• Ethernet Cable (7.5 m / 24.6 ft) × 1
• Screwdriver × 1

Optional Accessories

• Wall-Mounted Kit (TCP30WM Bracket) × 1

Input/Output Ports

• RJ45 (To Bar) × 1
• USB-A 2.0 (For USB Audio accessories) × 1
• Type-C (Ingest) × 1
• RJ45 (M Link) × 1
• USB 2.0 (Pairing wireless dongle) × 1
• Audio Out (3.5 mm) × 1
