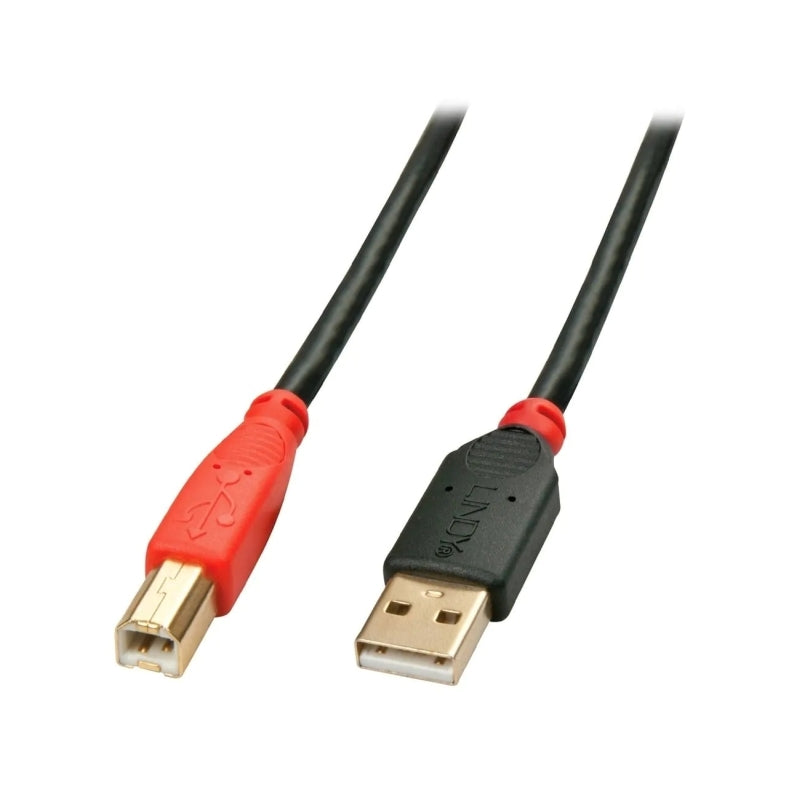

The Lindy 10m USB 2.0 Type A to B Active Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps.
With USB A male and USB B male connectors this product allows Type B devices like printers to be connected directly at longer distances and ensures flexible positioning.
The Lindy 10m USB 2.0 Type A to B Active Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows easy installation due to the active electronics that are housed in a small cable mould - an advantage over other active USB leads which use bulky connectors.
Please note: This product is not ideal for Bus powered devices. We only recommend using this cable with devices that have their own power supply.
Features
- 10 metre USB 2.0 Active Repeater Cable
- Supports transfer rates up to 480Mbps
- Ideal for direct device connection
- Plug & Play installation
- 2 year warranty
Specifications
Page yield: 10m (Black)
Specifications:
- Connector A: USB Type A Male
- Connector B: USB Type B Male
- Housing Material: Plastic
- Connector Plating: Front: Gold / Back: Nickel
- Pin Construction: Brass
- Pin Plating: Gold Flash
- Dimensions: USB A Male: 14x41x6mm, USB B Male: 10x41x10mm, Repeater: 10mm (diameter), length: 52.5mm
- Length: 10m
- Standard: USB 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
- Jacket Material: Half matt PVC low toxic
- Conductor Material: Tinned Copper
- Conductor Gauge: 26/20AWG
- Shielding: AL Mylar and braid
- Supported Bandwidth: 480 Mbps
- Nominal Attenuation: (0.064 MHz, -0.08 dB), (0.256MHz, -0.11 dB), (0.512MHz, -0.13 dB), (0.772 MHz, -0.15 dB), (1 MHz, -0.2 dB), (4 MHz, -0.39 dB), (8 MHz, -0.57 dB), (12 MHz, -0.76 dB), (24 MHz, -0.95 dB), (48 MHz, -1.35dB), (96 MHz, -1.9 dB), (200 MHz, -3.2 dB), (400 MHz, -5.8 dB),
- Minimum Bend Radius: 26mm
- Operating Temperature: 0C - 50C
- Storage Temperature: -20C - 60C
- Transmission Medium: Twisted Pair
- Transmission Technology: USB 2.0
- Packaging Type: Polybag
- Weight: 0.372kg
- Warranty: 2
- Product Compliance: CE, FCC, RoHS & REACH
Features:
- 10m USB 2.0 Active Repeater Cable
- Supports transfer rates up to 480Mbps
- Ideal for direct device connection
- Plug & Play installation
- 2-year warranty
| Cable Length | 5-10 Metre |
|---|---|
| Cable Type | USB-A |
| Cable Output | USB-B |
