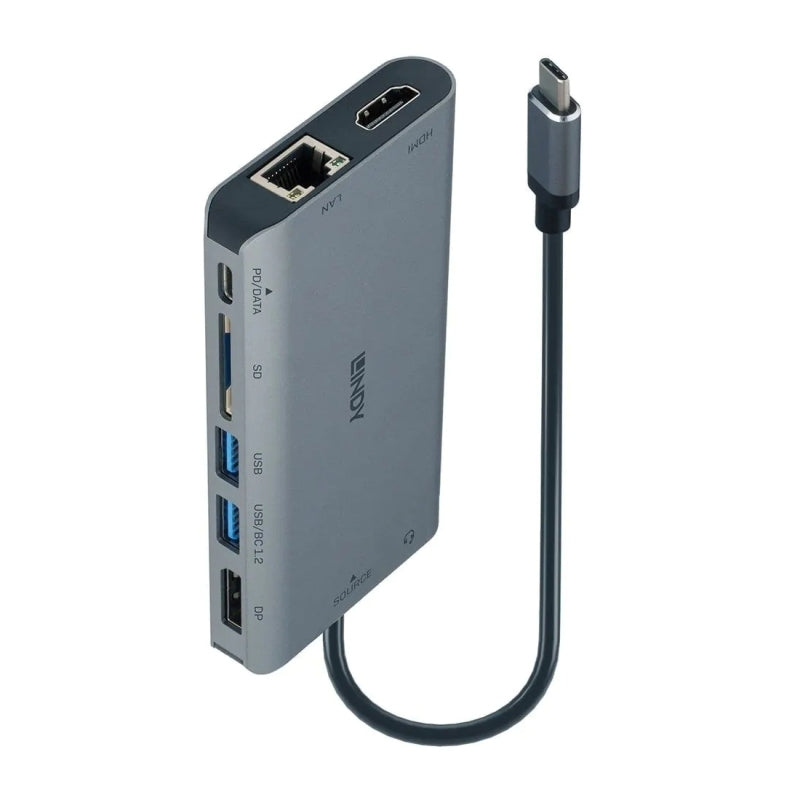

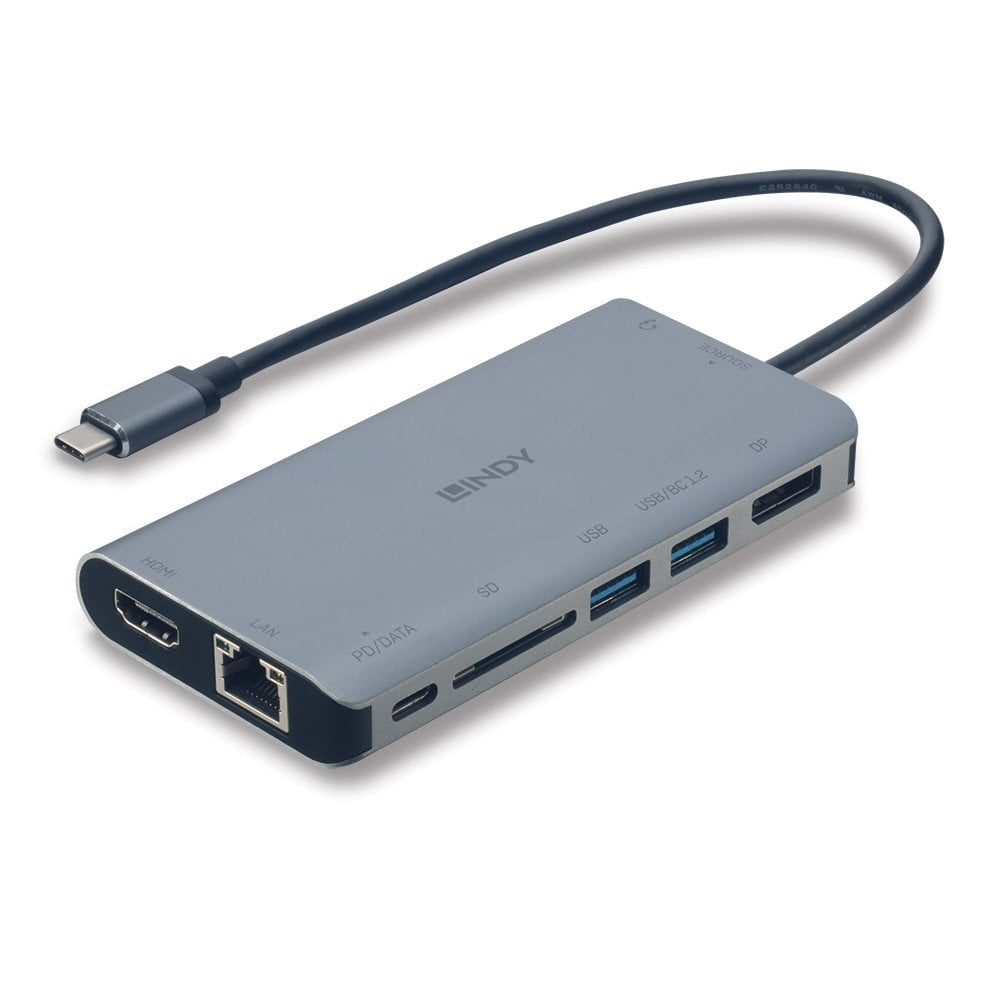

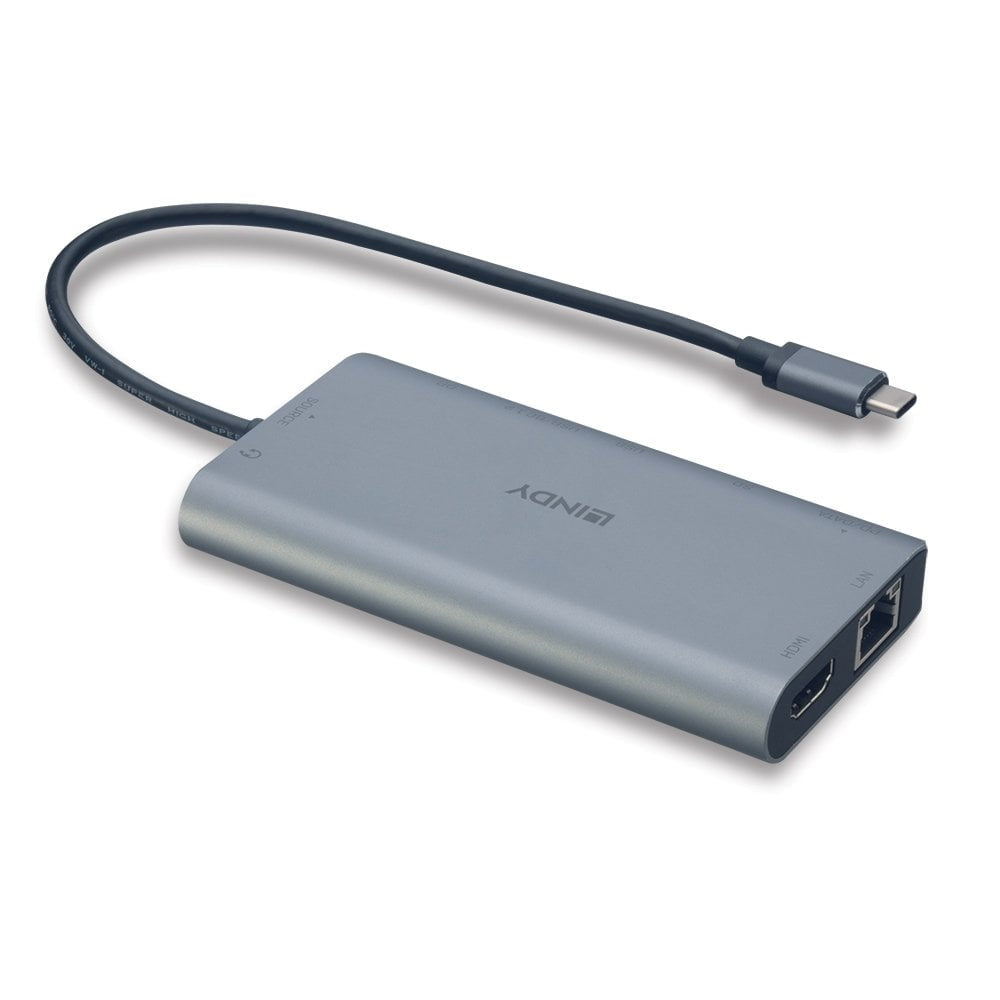

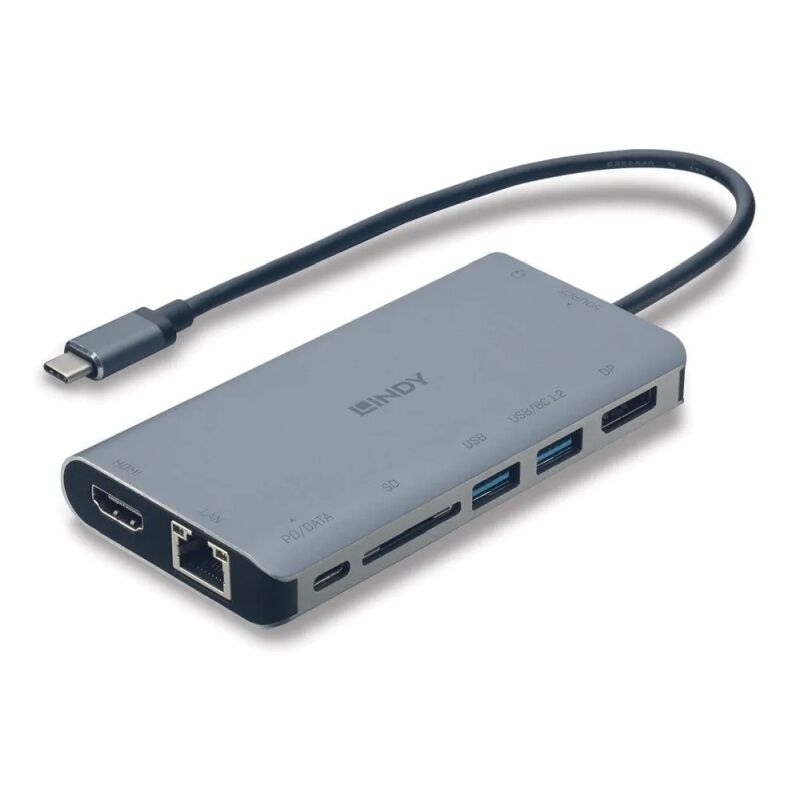

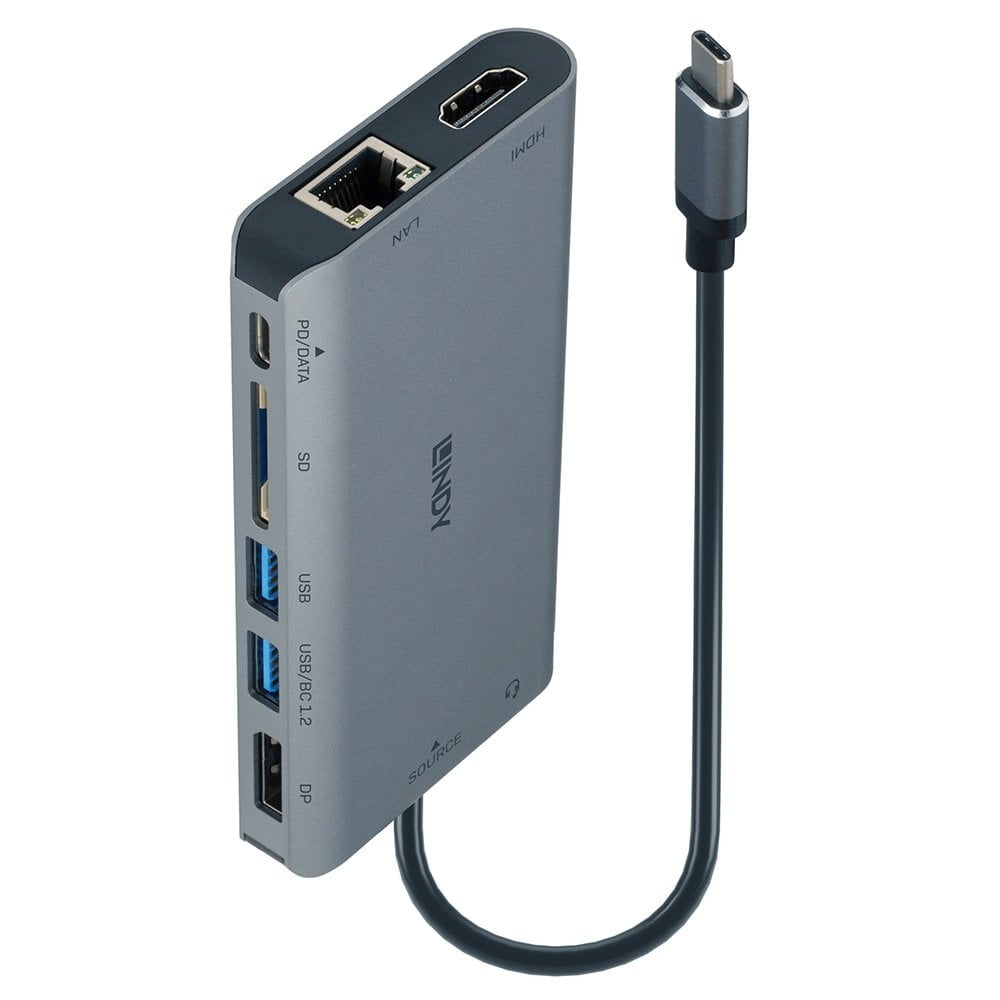

The DST-Mini XT is Lindy’s feature-packed mini docking station. Housed in robust aluminium, this compact dock has been designed for those who need greater additional connectivity, in a portable form factor.
Extended Displays

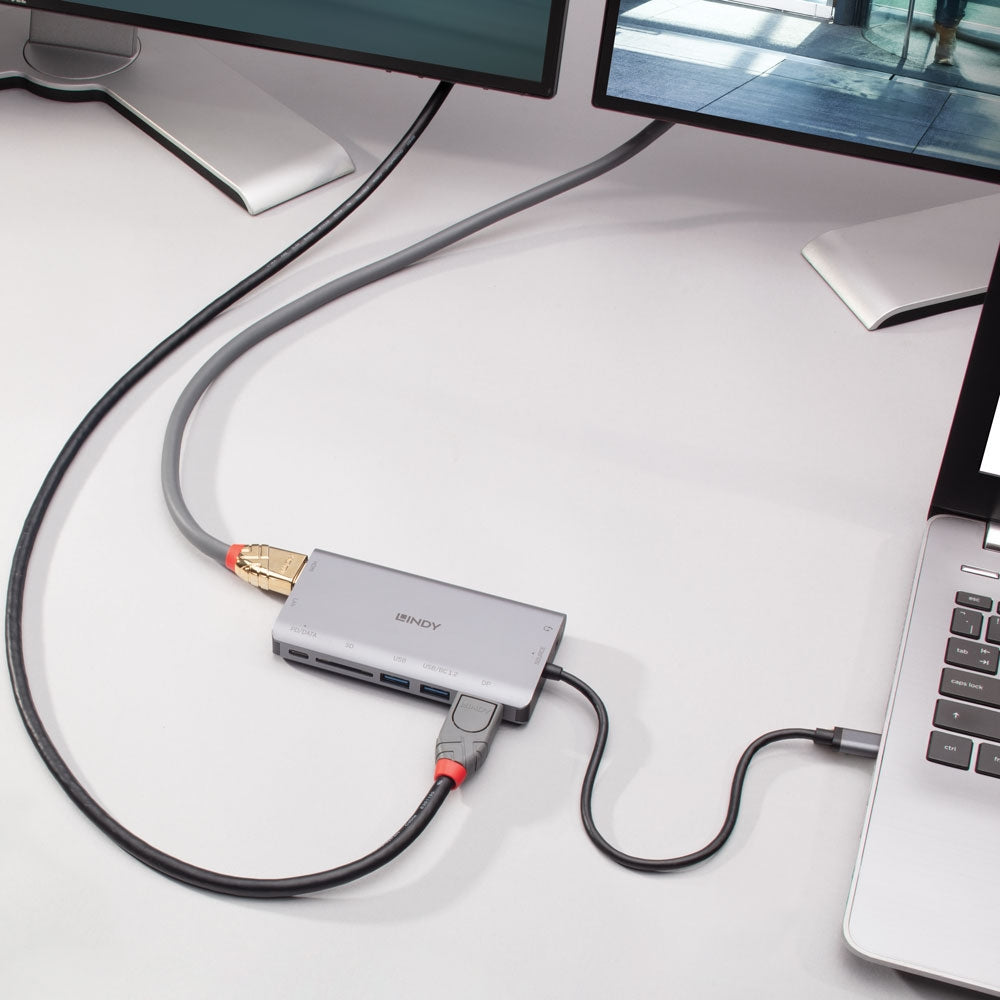

The DST-Mini XT can support a single extended display at 4K@30Hz through the HDMI or DisplayPort connections. Dual display setups are also possible with crisp Full HD 1080p. This makes this dock the perfect solution for any creative, data analyst or intense spreadsheet worker.
Added Connectivity

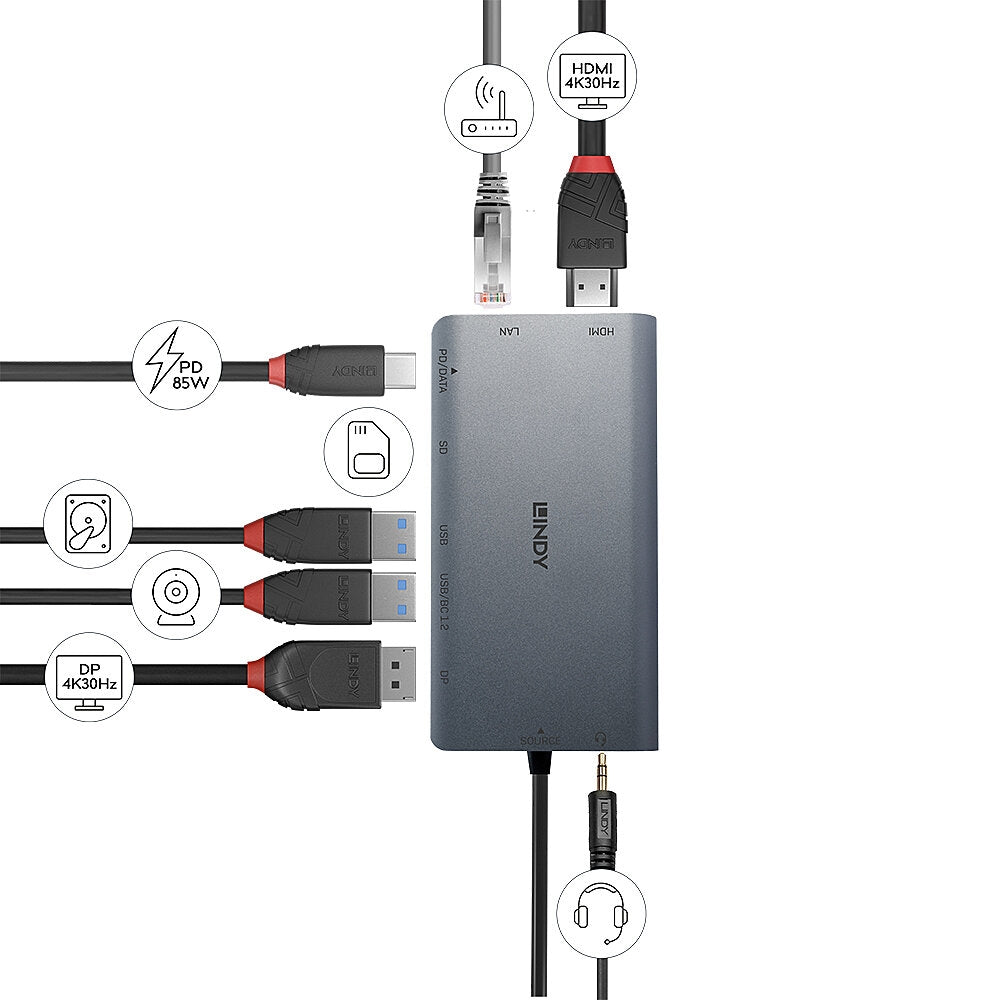

This docking station can unlock a world of connectivity for your device. Delivering DisplayPort, HDMI, Gigabit Ethernet, SD Card Slot, USB-C, SuperSpeed USB Type A ports (5Gbps) and a combined 3.5mm headphone jack. To deliver as much added functionality as possible, the right USB Type A port has both SuperSpeed data transfer and Battery Charging 1.2, meaning you can charge connected mobile devices.
Pass-through Charging
Thanks to the USB-C PD 3.0, by connecting a USB-C charger to the DST-Mini XT you can expect up to 100W fast charging as well as bidirectional charging to any peripheral connected to the right USB-A port. With Battery Charging 1.2, this port delivers 5V and up to 1.5A for faster charging. Simply connect one USB-C cable and be confident that your laptop and connected devices will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Features
- Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
- Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
- Features DisplayPort Alternate Mode
- USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock
- 2 year warranty
Specifications
Specifications:
- Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
- Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0 | HDMI 1.4 | DP 1.2 | Gigabit LAN | Audio (combo)
- Supported Bandwidth: 5 Gbps | 10/100/1000 Mbps
- Maximum Input Resolution: 3840 x 2160@30Hz
- Maximum Output Resolution: 3840 x 2160@30Hz (HDMI) | 3840 x 2160@30Hz (DP) | simultaneous connection: 1920 x 1080
- Chipset: VM3332 | VL817 | VL102 | AU6438 | RTL8153B | HS-100B
- Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
- Power Delivery: PD 3.0 up to 100W (20V 5A)
- HDCP Support: HDCP 1.4
- Supported Audio: Supports 48/44.1kHz audio sampling rate
- Separate Audio Ports: 1x Audio combo port 3.5mm
- Special Features: DisplayPort Alternate Mode | USB Type C Female port supports power and data | 1x Battery Charging 1.2 port
- Inputs: 1 x USB Type C (Male)
- Outputs: 1x HDMI (Female) | 1x DisplayPort (Female) | 1x RJ45 (Female) | 2x USB Type A (Female) | 1x USB Type C (Female) / 1x SD slot | 1x 3.5mm Audio (Female)
- Power: 1 x USB Type C (Female) PD port
- Dimensions WxDxH: 116.5 x 61 x 16mm
- Housing Material: Aluminium
- Net Weight: 0.115kg
- Power Requirements: Bus-powered
- Packaging Dimensions: 150 x 137 x 120mm
- Gross Weight: 0.15kg
- Warranty (Years): 2
- Certificated: CE | UKCA | FCC | REACH & RoHS | California Proposition 65
Features:
- Adds 2 USB Type A ports & 1 USB Type C port (5Gbps) a 4K HDMI and DP port Gigabit Ethernet and an Audio port to a laptop
- Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
- Features DisplayPort Alternate Mode
- USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock
- Extend Your Displays
- Added Connectivity
- Plug-and-Play
- 2 year warranty
| Output Port | USB-A |
|---|---|
| Output Port | HDMI |
| Output Port | DisplayPort |
| Output Port | USB-C |
| Output Port | Network |
| Output Port | Audio |
| Output Port | USB-C,HDMI,USB-A,Network,DisplayPort,Audio |
